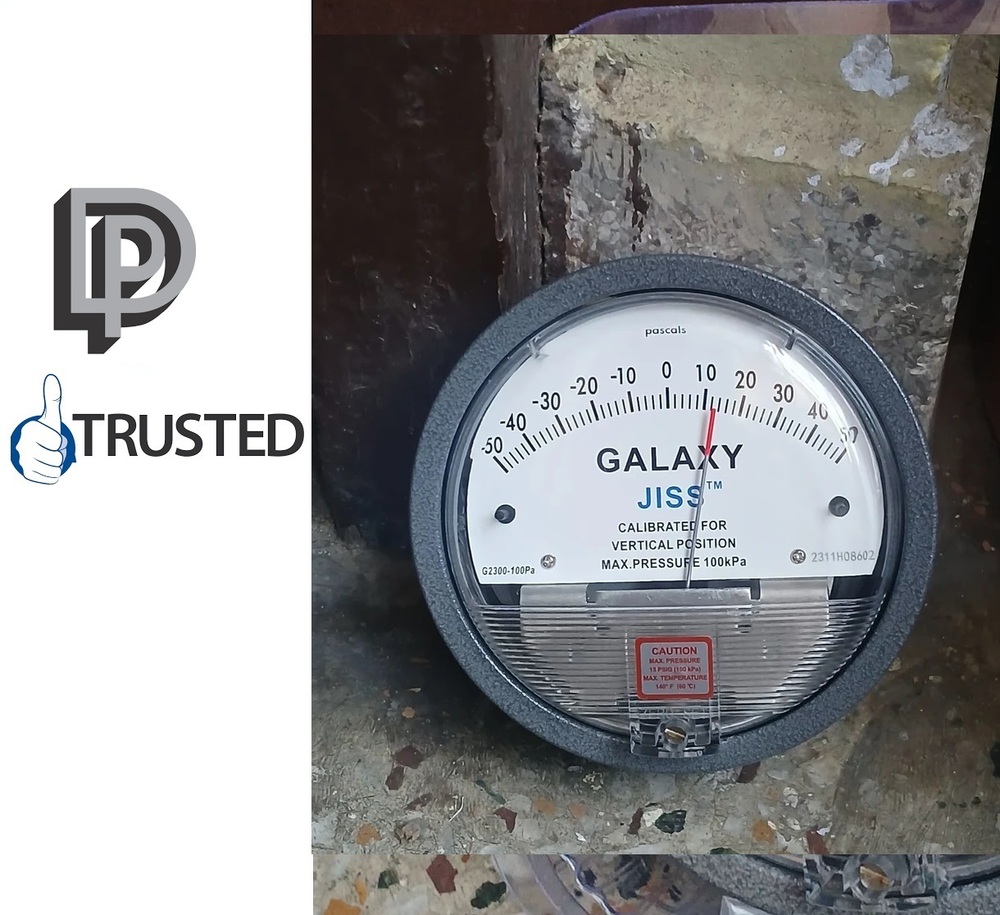

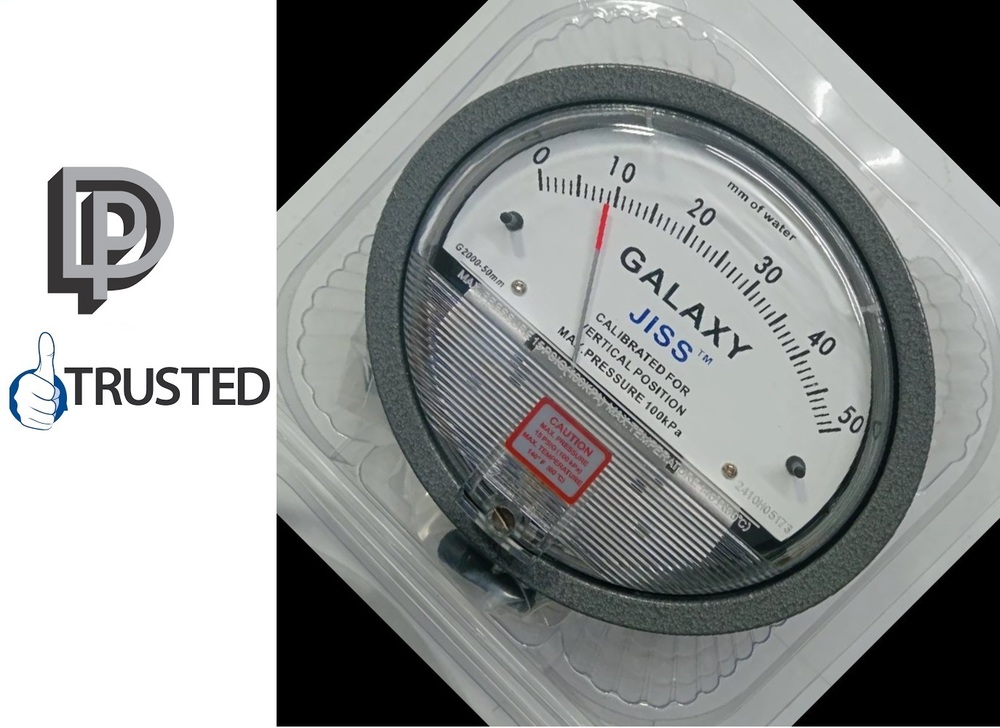

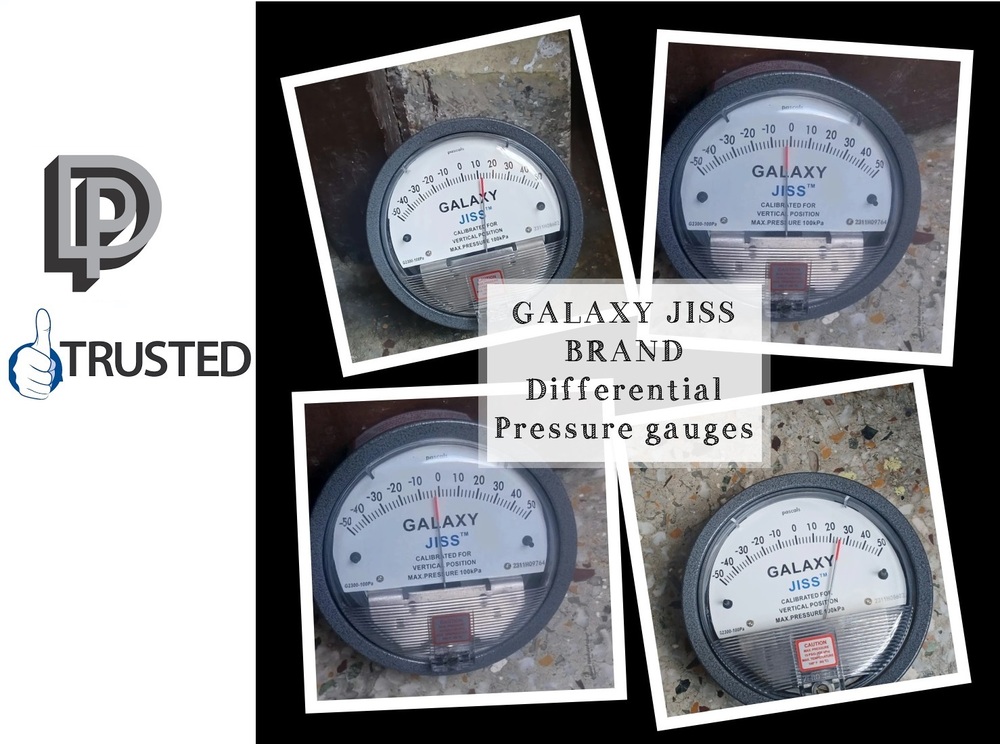

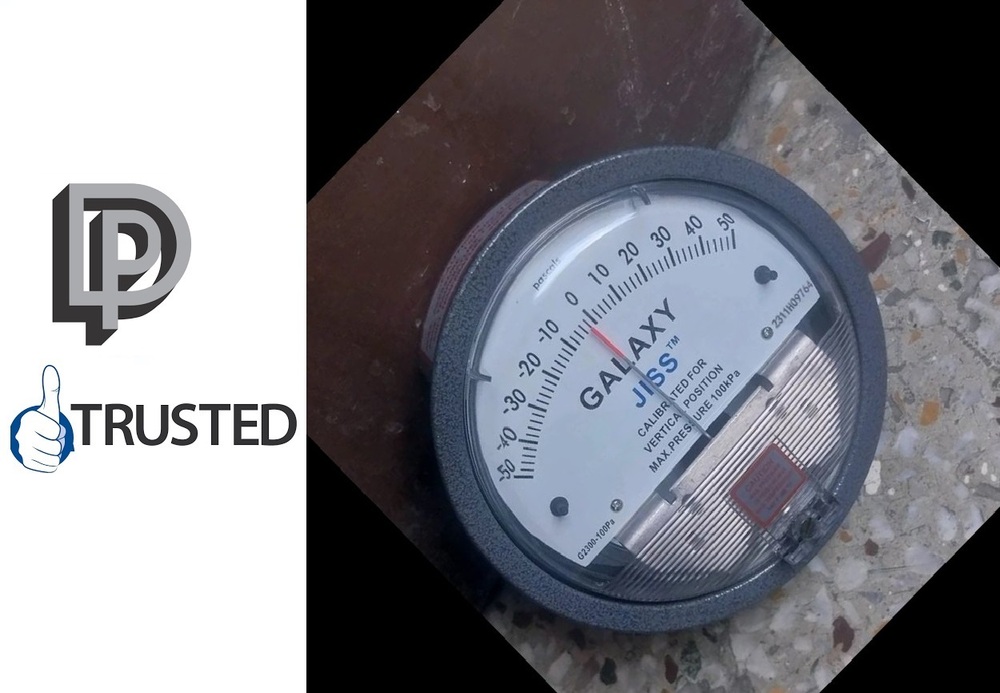

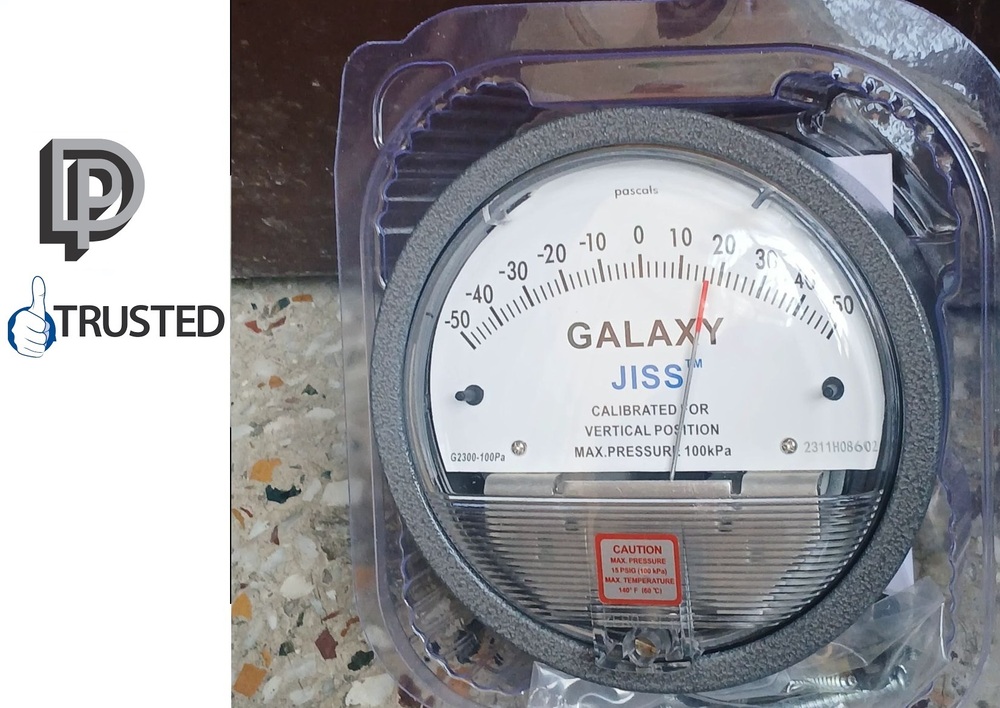

GALAXY i DIFFERENTIAL PRESSURE GAUGE By Daultabad Industrial Area Gurgaon Haryana

About GALAXY i DIFFERENTIAL PRESSURE GAUGE By Daultabad Industrial Area Gurgaon Haryana

GALAXY i DIFFERENTIAL PRESSURE GAUGE By Daultabad Industrial Area Gurgaon Haryana

Series G2000 GALAXY Differential Pressure Gauges are Widely Utilized Fnor Measuring Pressure of Fan And Blowing Machine, resistance of Filter, Wind Speed,Furnace Pressure,Differential Pressure Of Pore Plate,The Pressure of drum water level,Liquid Amplifier And Hydraulic Pressure System. Meantime,They Are Used To Control The Automatic Valve And Specific Value Of Air-Producer Gas In Combustion And They Are Used To Test Blood Pressure And Respiratory Pressure In Medical Health Care Equipment.There Are More Than 81 Models To Suit Your Needs Precisely.The Key Components Adopt Import Materials.
SPECIFICATION

• Ambient Temperature - -21~140-6~60

• Rated Pressure -20 inHg~30 inHg (-68~103KPa)

• Overpressure - Protective rubber stopper will be blown out if rated pressure is up to about 50.8 inHg (172KPa)

• Process Connections - 1/8" female NPT duplicate high and low pressure taps-one pair side and one pair back

• Housing - Die cast aluminum case and bezel,with acrylic cover, Exterior finish is coated gray to withstand 168 Hour Salt Spray Corrosion Test

• Accuracy -A2% of full span at 70 (21 (A3% on-0,and A4% on -00)

• Range -20 inHg~38 inHg (-68KPa~130KPa)(Special Specification also can be ordered.

FEATURES

• OEM/ODM
• There Is No Need To Fill Liquid To Gauge
• The Gauge Can Measure Positive Pressure,Negative Pressure And Differential Pressure
• It Will Be Easy To Install And Measure In Different Ways Because Of Two Groups Of Ports Which Can Measure Positive And Negative Pressure
• To Eliminate The Friction From The Movement Of Gear Wheel By The Mechanism Of Magnetic Magnet Feed
• Exact And Stable Fixed Position Of Needle
• The Gauge Has Great Antiknock Characteristics
• There Are 81 Types Of Ranges.
• Minimum is 0-60 Pa And Maximum is 0-21-KPa

PRODUCT APPLICATIONS

• Filter Monitoring
• Air Velocity With Pitot Tube
• Blower Vacuum Monitoring
• Fan Pressure Indication
• Duct,Room or Building Pressures
• Clean Room Positive Pressure Indication

MODELS & ORDERING

GALAXY By  Model Number Popularity

• FILTER BY
• RANGE-PSI

Model	Description
G2201	Differential Pressure Gage,Range 0-1 PSI,Minor Divisions .02
G2202	Differential Pressure Gage,Range 0-2 PSI,Minor Divisions .05
G2203	Differential Pressure Gage,Range 0-3 PSI,Minor Divisions .10
G2204	Differential Pressure Gage,Range 0-4 PSI,Minor Divisions .10
G2205	Differential Pressure Gage,Range 0-5 PSI,Minor Divisions .10
G2210	Differential Pressure Gage,Range 0-10 PSI,Minor Divisions .20,MP Option Standard
G2215	Differential Pressure Gage,Range 0-15 PSI,Minor Divisions .50,MP Option Standard
G2220	Differential Pressure Gage,Range 0-20 PSI,Minor Divisions .50,MP Option Standard
G2230	Differential Pressure Gage,Range 0-30 PSI,Minor Divisions 1.0,HP Option Standard

Versatile Pressure Measurement

The GALAXY i Differential Pressure Gauge excels at monitoring pressure differences in steam, gas, and process lines. Its adaptability makes it a preferred choice across pharmaceutical manufacturing, power generation, cement plants, food and beverage sectors, and more. With the ability to measure in multiple units (MM WC, CM, KPA, PSI), it ensures precision and compatibility with international standards.


Durable Design for Industrial Use

Crafted from metal alloy and weighing 550 grams, this pressure gauge offers exceptional strength and longevity. The 4-inch, plastic-dial display is engineered for easy readability, while the choice of finishes-antique, polished, galvanized, or matte-ensures suitability for varied industrial aesthetics. The inclusion of duplicate pressure taps enhances safe and versatile installation options.
