COMBINATION FILTER

Get a Price/Quote

COMBINATION FILTER Specification

Capacity
5000 LPH

Pressure
0.2-0.8 MPa

Cleaning Method
Manual or Air Blow

Efficiency (%)
Up to 99%

Temperature Range
-10C to 80C

Flow Rate
Up to 1500 m3/hr

Filtration Grade
Medium to Fine

Filter Type
Combination Cartridge

Media Type
Synthetic Fiber, Metal Mesh

Connecting Type
Flanged

Condition
New

Material
Mild Steel

Mesh
Stainless Steel Mesh

Diameter
165 mm

Construction
Welded/Seamless

Medium Filter
Air/Oil/Water

Weight
5 kg

Shape
Cylindrical

Feature
Compact design, dual-stage filtration, easy installation

Max Differential Pressure
0.5 bar

End Connection
Threaded/Flanged

Color
Silver/Grey

Service Life
12-18 months

Resistance
Corrosion and Rust Resistant

Surface Finish
Powder Coated

Mounting Type
Vertical

Usage/Application
Industrial Filtration

COMBINATION FILTER Trade Information

Payment Terms
Cash on Delivery (COD), Cash Against Delivery (CAD), Cash in Advance (CID), Cash Advance (CA)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
Chandigarh, Himachal Pradesh, Andaman and Nicobar Islands, South India, Central India, East India, West India, Andhra Pradesh, Assam, Arunachal Pradesh, Bihar, Goa, Haryana, Jammu and Kashmir, Jharkhand, Karnataka, Madhya Pradesh, Maharashtra, Mizoram, Meghalaya, Manipur, Punjab, Pondicherry, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, West Bengal, Nagaland, Uttarakhand, Daman and Diu, Dadra and Nagar Haveli, Lakshadweep, Uttar Pradesh, Delhi, Gujarat, North India, Kerala, Odisha, Chhattisgarh, All India

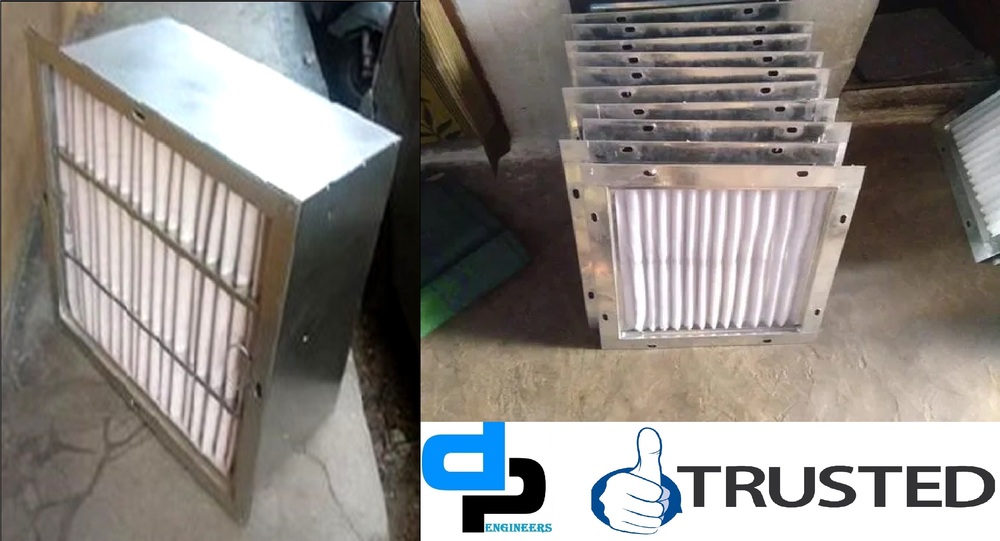

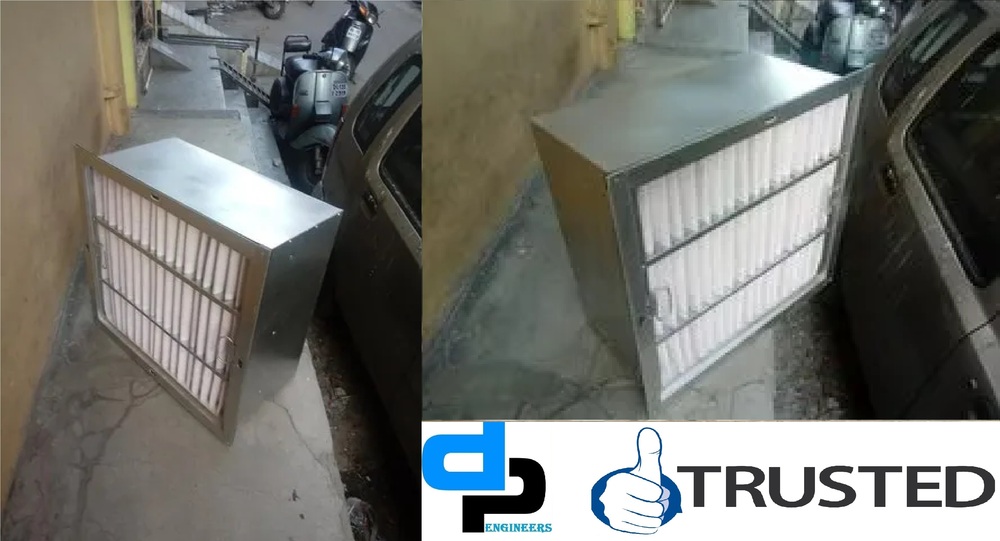

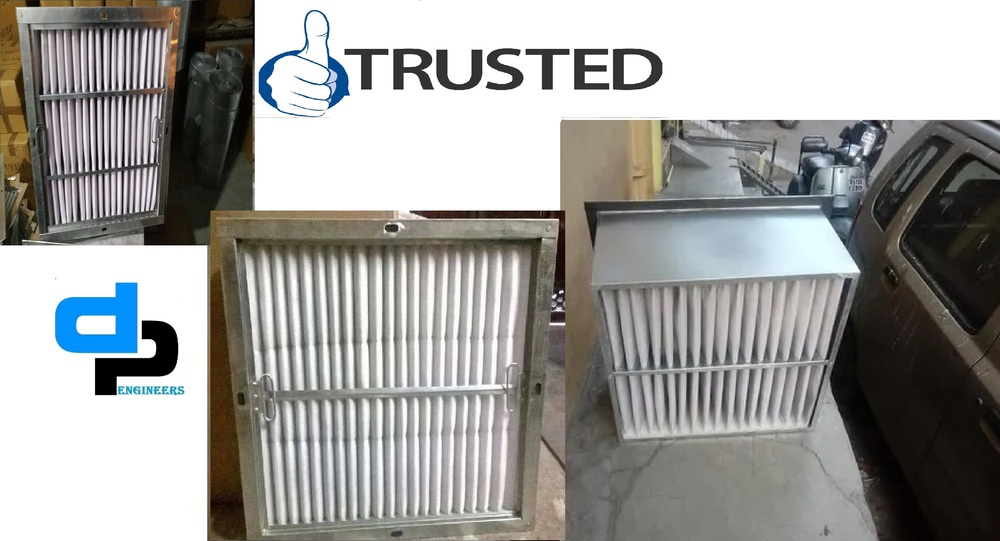

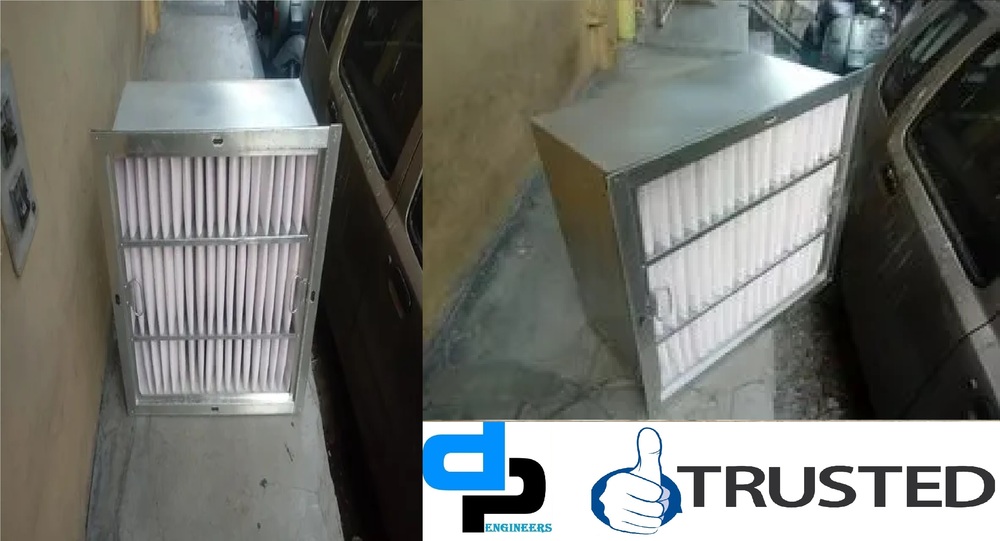

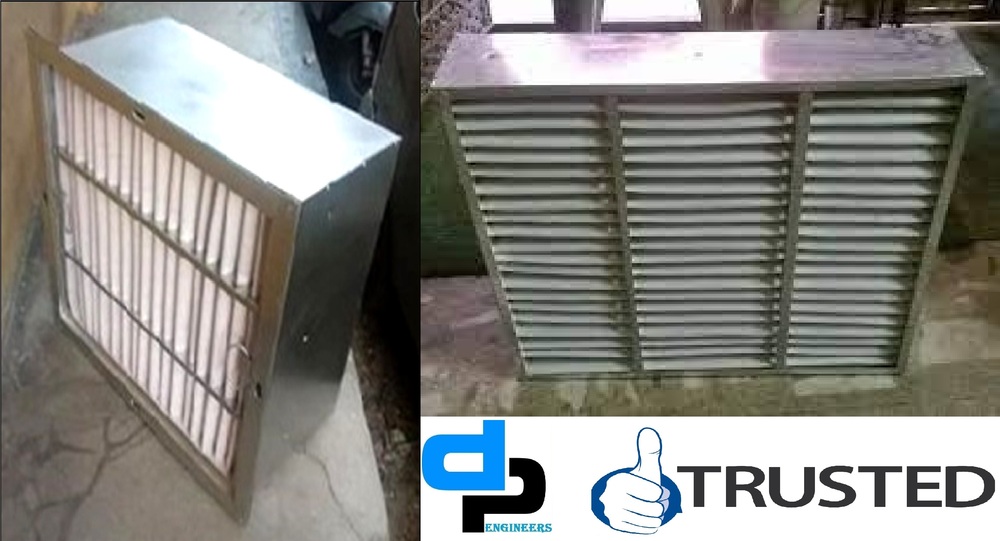

About COMBINATION FILTER

COMBINATION FILTER

With sincere intentions to lead in international market, we have been successfully affianced in manufacturing, exporting and supplying the best quality Combination Air Filters. The offered filters are manufactured under the stern vigilance of our adept professionals with use of the best quality raw materials and the pioneering techniques at our highly advanced techniques. Widely used for filtration of air in order to restrict dust particles, these find applications in various industries. Apart from this, the provided Combination Type Filters can be purchased at marginal rates from us.

Features:

Fine finish
Easy installation
Elevated durability
Excellent filtration

Technical Specifications:

Construction :	Flange Type
Size :	610 x 610 mm x 150 / 300 mm
Frame :	G.I.
Efficiency :	90% down to 5 Microns
Initial Pr Drop :	7.5 mm of W.G.
Final Pr Drop :	25 mm of W.G.
Sealing :	Epoxy
Media :	HDPE/ Synthetic combination
Inner filter :	Metallic Mesh
Type :	Pleated

Reliable Dual-Stage Filtration

Our combination filter leverages a dual-stage approach for medium to fine particulate removal, optimizing industrial filtration of air, oil, or water. Constructed with a stainless steel mesh and synthetic fiber media, it delivers up to 99% filtration efficiency while ensuring longevity and resistance to rust and corrosion.

Flexible Installation and Durable Build

Designed with both flanged and threaded end connections, this filter integrates smoothly into your existing pipelines. Its powder-coated mild steel construction and compact cylindrical shape guarantee durability, while welded or seamless construction supports heavy industrial use.

Efficient Operation and Maintenance

The filters vertical mounting and easy-access design allow for swift manual or air blow cleaning, ensuring minimal downtime. With a maximum differential pressure of 0.5 bar and a recommended service life of 1218 months, it offers reliable, economical performance in demanding environments.

FAQs of COMBINATION FILTER:

Q: How does the combination filter achieve high efficiency in industrial filtration?

A: The combination filter incorporates dual-stage filtration using stainless steel mesh and synthetic fiber media. This design allows it to capture both medium and fine particles efficiently, resulting in filtration rates of up to 99%. Its robust build ensures consistent and reliable performance in industrial environments.

Q: What is the recommended process for cleaning and maintaining this filter?

A: Cleaning can be performed manually or with an air blow. Access the filter according to the manufacturers guidelines, remove accumulated contaminants, and ensure the mesh is clear. Regular maintenance enhances efficiency and extends the overall service life to 1218 months.

Q: When should the filter be replaced to maintain optimal performance?

A: It is advisable to replace the filter after 1218 months of service, or when a maximum differential pressure of 0.5 bar is reached, whichever occurs first. Regular inspection will help determine the ideal replacement time based on system demands.

Q: Where is this filter typically installed within an industrial system?

A: The combination filter is designed for vertical mounting directly within industrial pipelines, utilizing either threaded or flanged end connections for secure installation. Its compact cylindrical form makes it suitable for a range of filtration setups, especially where space is limited.

Q: What are the main benefits of using this combination filter in an industrial setting?

A: This filter offers high filtration efficiency, corrosion and rust resistance, and easy installation. Its dual-stage system ensures excellent medium to fine particle removal, while its durable construction and manual cleaning capability support low maintenance and long service life.

Q: Can this filter handle different types of media, such as air, oil, or water?

A: Yes, the combination filter is engineered to handle multiple media types including air, oil, and water, ensuring versatility across diverse industrial applications and optimized filtration regardless of medium.
