CATEGORY LEADER >>Huba Control Differential Pressure Transmitter<< 692.919007141

About CATEGORY LEADER >>Huba Control Differential Pressure Transmitter<< 692.919007141

CATEGORY LEADER >>Huba Control Differential Pressure Transmitter<< 692.919007141

• Brand : Huba Control
• Model : 692.919007141
• Range : 0-6 Bar
• Type : 692 0-6 Bar
• Current Out : 4-20mA
• Voltage – 11-33V DC
• Made In Switzerland

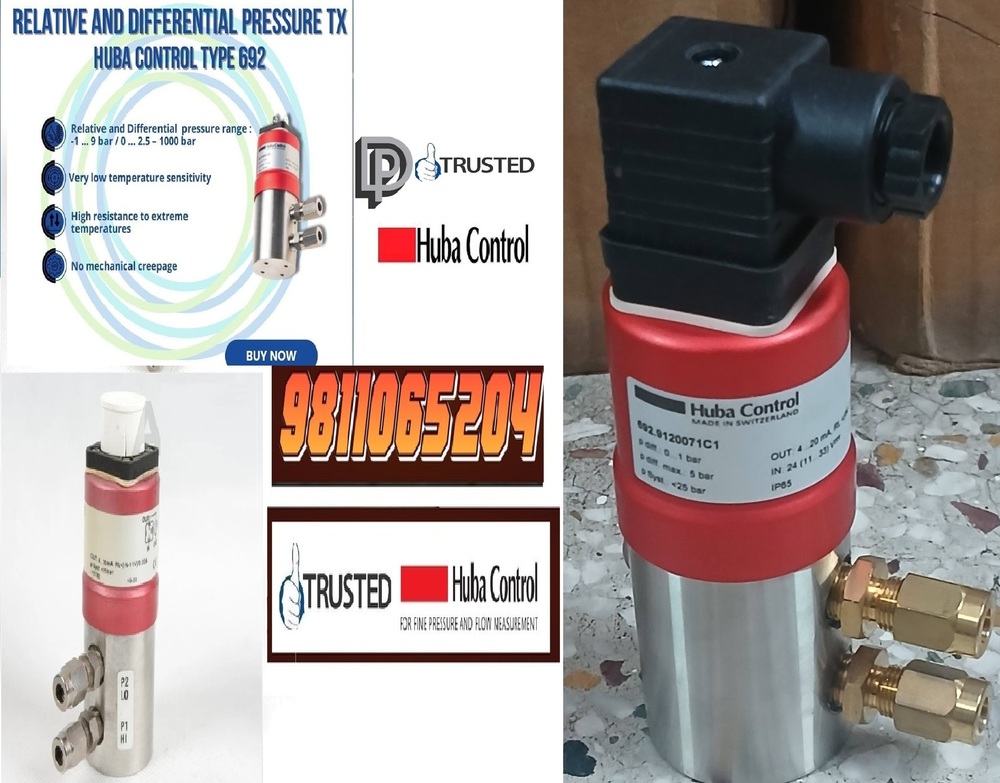

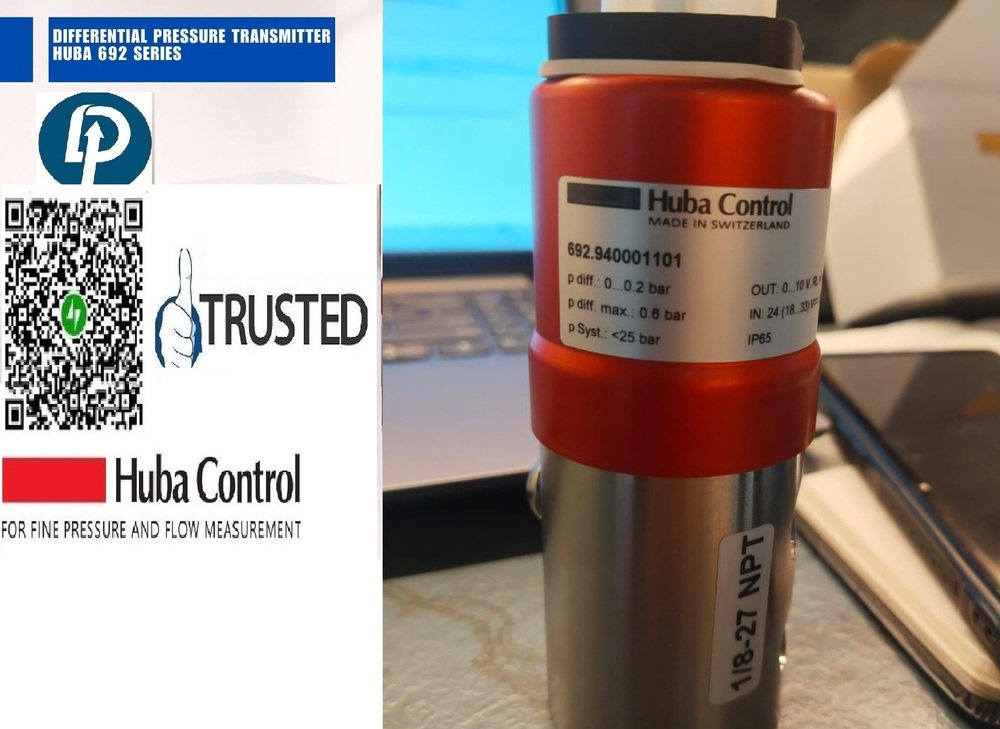

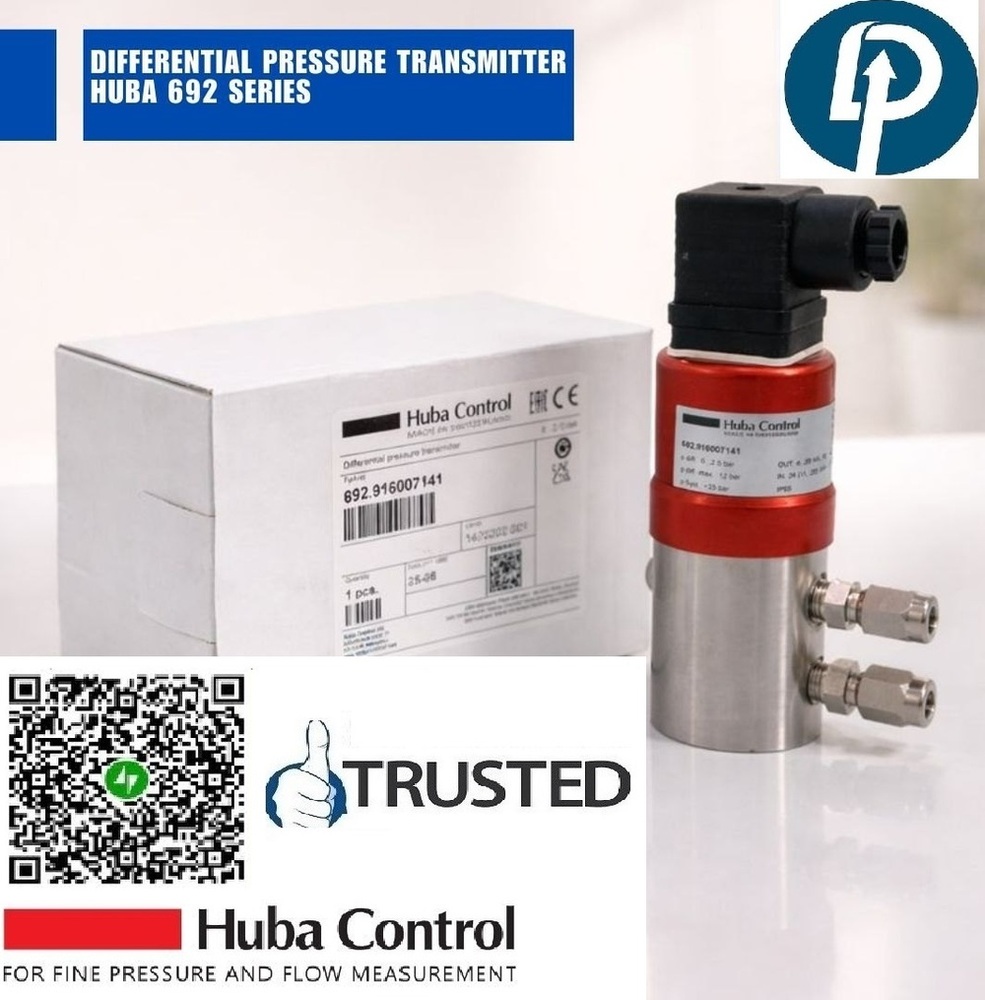

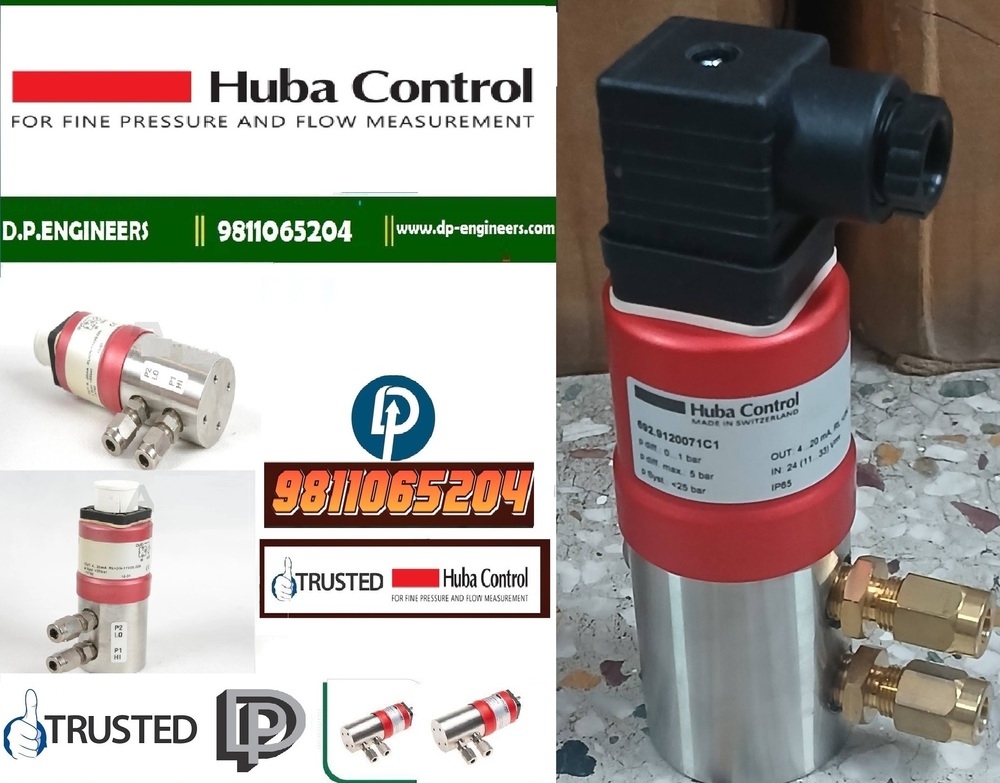

Huba Control Differential Pressure Transmitter 692

Product Information

Differential pressure transmitter 692

The Pressure Transmitters of Type 692 Feature The Unique And Proven Ceramic Technology. Depending On The Application, Various Pressure Connections And Electrical Connections With Standardized Output Signals Are Available. Due To The Wide Variety Of Options,The Transmitters 692 Are Suitable For All Types Of Industrial Applications.

• Very Low Temperature Sensitivity
• High Temperature Resistance
• No Mechanical Creep
• Individual Applications Through Modular System And Different Material Choices

Technical Data

Product Feature

• Pressure Measuring Range : 0 … 25 Bar (Relative And Difference)
• Response Time : <5 ms
• Load Change : <50 Hz
• Sensor Weight : 430 g

Field Of Application

• Media : Process Medium; Gas
• Medium Temperature : -15 … 85 °C
• Permissible Overload On One Side : See Variant Plan
• System Pressure : 12; 25; 50 Bar
• Bursting Pressure : 1.5 x System Pressure

Ambient Condition

• Ambient Temperature : -15 … 85 °C
• Storage Temperature : -40 … 85 °C

Material

• Housing : Stainless Steel 1.4305 (AISI 303); PVDF
• Pressure Connection With Media Contact : Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni
• Measuring Element With Media Contact : Ceramic Al2O3 (96 %)
• Sealing Material With Media Contact : FPM; EDPM; NBR; MVQ; CR

Electrical Data

• Current Consumption : <20 mA
• Inverse-Polarity Protection : Short-Circuit And Reverse Polarity Protected. Each Connection Against Each Other With Max. Supply Voltage.

Installation Guide

• Installation Orientation : any
• Assembly : Mounting Bracket

Approval

EMC Compatibility : CE-Compliant In Accordance With EN 61326-2-3

Applications

• REFRIGERATION SYSTEMS
• CPU
• WATER PUMPS
• ULTRAFILTRATION SYSTEM

Accessories

• Mounting Bracket
• Socket Outlet DIN EN 175301-803-A : With Seal; IP 65, When Mounted And Screwed.
• Socket Outlet DIN EN 60130-9 : IP 65, When Mounted And Screwed.
• Calibration Certificate

Additional Information:

• Item Code: Huba Control Differential Pressure Transmitter 692.919007141
