Flange type micro Fine Filter

Get a Price/Quote

Flange type micro Fine Filter Specification

Efficiency (%)
98%

Filtration Grade
Micro Fine

Filter Type
Cartridge/Screen

Capacity
Custom based on flow rate

Media Type
Stainless steel mesh

Connecting Type
Flanged

Flow Rate
2 to 150 m/h (varies by size)

Temperature Range
-10C to 80C

Pressure
Max 16 bar

Cleaning Method
Manual or Backwash

Condition
New

Material
Mild Steel (Body), Stainless Steel Mesh

Mesh
25 to 200 micron

Diameter
DN25 to DN300 (customizable)

Construction
Flanged end, robust welded construction

Medium Filter
Air, Liquid, Gas

Weight
8-25 kg depending on size

Shape
Cylindrical

Feature
High efficiency filtration, compact design, corrosion-resistant

Surface Finish
Powder coated or epoxy painted

Operating Position
Vertical

Seal Type
PTFE or Nitrile rubber gasket

End Connection Standard
ANSI/DIN/JIS flanges available

Corrosion Protection
Inside & outside anti-rust treatment

Installation Type
Inline

Test Pressure
1.5 times working pressure

Color
Blue (standard), customizable

Maintenance
Easy access for filter replacement

Suitable For
Process industry, water treatment, chemicals, HVAC

Replacement Interval
6~12 months (application dependent)

Flange type micro Fine Filter Trade Information

Payment Terms
Cash on Delivery (COD), Cash Against Delivery (CAD), Cash in Advance (CID), Cash Advance (CA)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
Chandigarh, Manipur, Meghalaya, Andaman and Nicobar Islands, Pondicherry, South India, North India, East India, West India, Assam, Arunachal Pradesh, Bihar, Delhi, Daman and Diu, Gujarat, Goa, Haryana, Himachal Pradesh, Jammu and Kashmir, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Tamil Nadu, Tripura, Uttar Pradesh, West Bengal, Uttarakhand, Dadra and Nagar Haveli, Lakshadweep, Telangana, Andhra Pradesh, Central India, Jharkhand, Chhattisgarh, All India

About Flange type micro Fine Filter

Flange type micro Fine Filter

Product description:

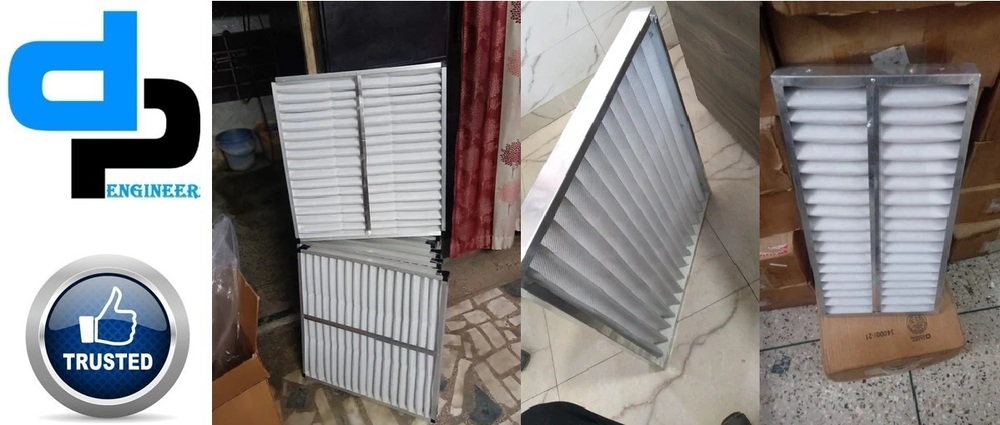

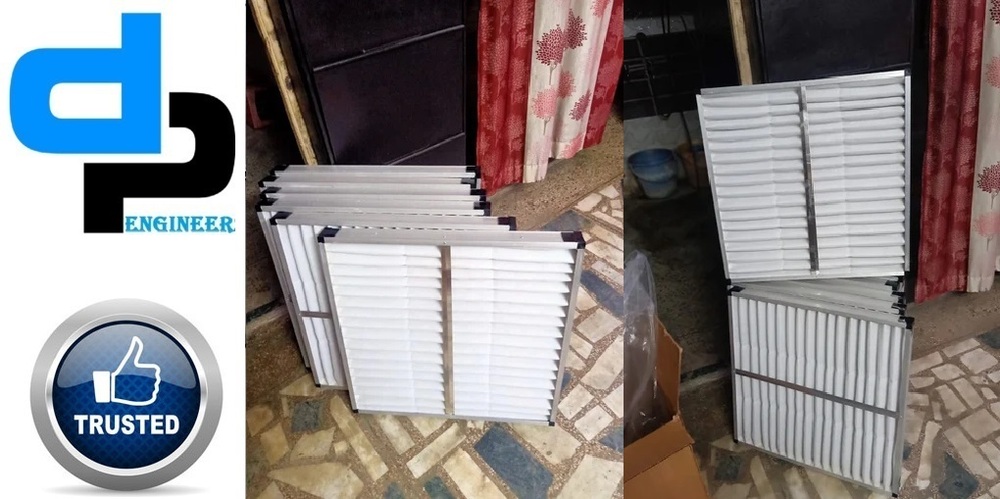

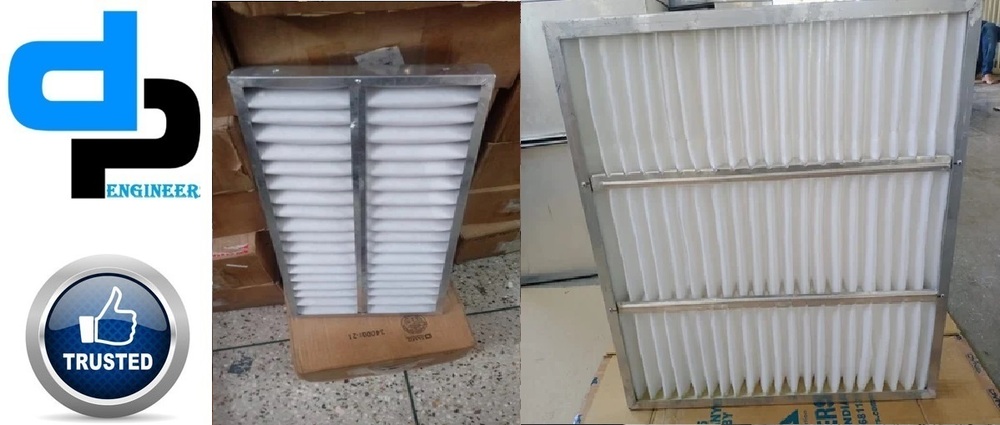

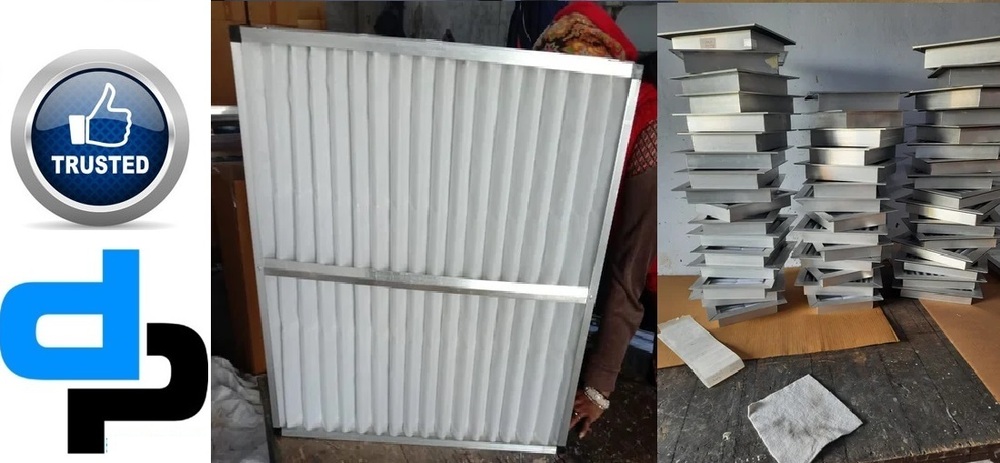

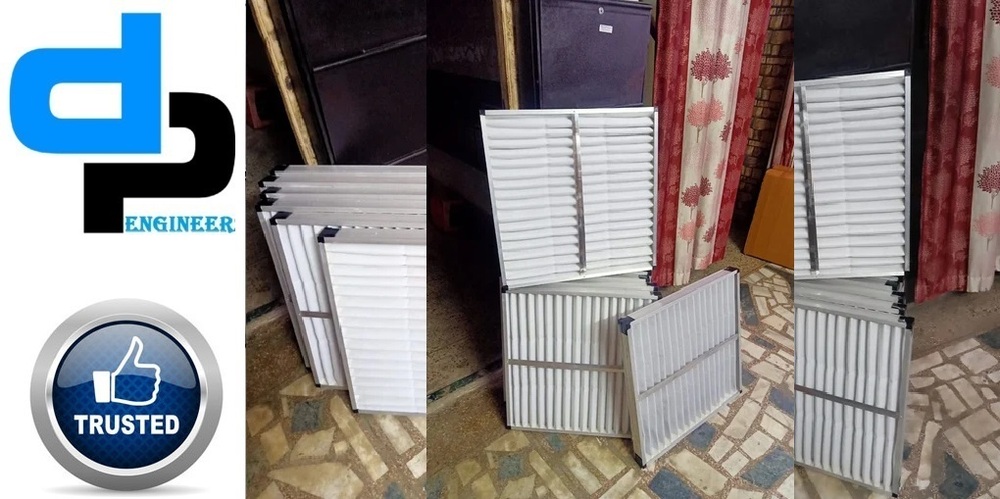

Flange type micro Fine Filter
Enriched by our vast industrial experience in this business, we are involved in offering an enormous quality range of Micro Fine Filter Flange Type.
Specifications:

Material Used: Aluminium anodized
Flow: Standard Flow
Size: 610x610x305
Applications:
Laminar flow units,
clean room application,
hospitals
pharmaceuticals

Precision Filtration for Diverse Applications

Engineered for use in demanding environments such as water treatment plants, chemical processing, and HVAC systems, this micro fine filter excels in removing fine contaminants. With stainless steel mesh filtration and customizable micron ratings, the filter attains a high level of particle retention across air, liquid, or gas streams, protecting downstream equipment and improving media quality.

Robust Construction and Easy Maintenance

Constructed from mild steel and fitted with stainless steel mesh, the filter promises longevity and strength. Its anti-corrosive treatments both inside and outside, combined with a powder-coated or epoxy-painted finish, ensure resilience in harsh conditions. The user-friendly design provides quick access for cartridge or screen replacement, minimizing system downtime.

Flexible Integration and Customization

The filters modular, cylindrical structure is available in various diameters and flow rates (2 to 150 m/h), supporting vertical installation with flanged connections as per ANSI, DIN, or JIS standards. Custom options are available for color, size, and capacity, making it an ideal solution for a broad range of industrial installations.

FAQs of Flange type micro Fine Filter:

Q: How does the Flange Type Micro Fine Filter operate in filtration processes?

A: This filter utilizes a stainless steel mesh, available in 25 to 200 micron ratings, to capture fine particles from air, liquid, or gas streams. Integrated directly inline in your process, contaminants are trapped within the mesh, ensuring a 98% filtration efficiency and protecting sensitive downstream equipment.

Q: What maintenance procedures are required and how often should the filter be replaced?

A: Maintenance is straightforward, with the filter designed for quick access and easy removal. Replacement intervals typically range from 6 to 12 months, depending on application demands and contaminant load. Regular inspection and cleaning, whether manual or using the backwash option, help sustain performance.

Q: When is it necessary to backwash or clean the filter?

A: Cleaning or backwashing should be performed when you notice a drop in system flow rate or an increase in differential pressure across the filter. Timely maintenance helps maintain operational efficiency and prolongs filter life.

Q: Where can this micro fine filter be installed?

A: This model is engineered for vertical, inline installation using standardized flanged ends (ANSI, DIN, or JIS), making it suitable for new projects or retrofitting into existing pipelines in process industries, water treatment, chemical plants, and HVAC systems.

Q: What are the benefits of using this micro fine filter in industrial applications?

A: Key advantages include high filtration efficiency, corrosion-resistant construction, adaptability to various fluids and gases, and robust performance under pressures up to 16 bar and temperatures from -10C to 80C. The customizable build ensures perfect integration into your specific process requirements.

Q: How does the filter ensure corrosion protection and durability?

A: Both internal and external surfaces receive specialized anti-rust treatments, combined with an industrial-grade powder coating or epoxy paint, greatly enhancing resistance to chemical or environmental attack and maintaining structural integrity over long-term use.
