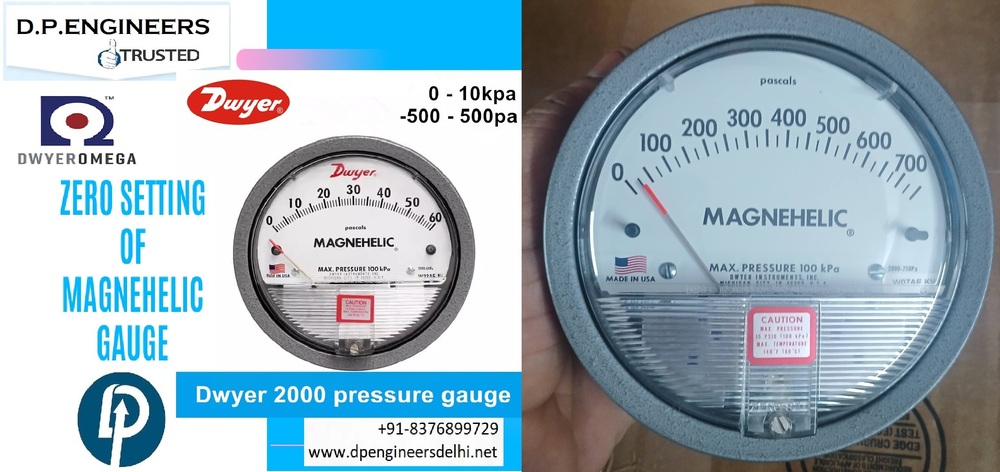

Dwyer USA Magnehelic Gauges .05-0-.2 Inch WC

Get a Price/Quote

Dwyer USA Magnehelic Gauges .05-0-.2 Inch WC Specification

Thread
1/8 NPT Female

Display
Analog Dial

Seal Material
Silicone Rubber

Bourdon Tube
Not Applicable (Uses Diaphragm/Piston)

Grade
Industrial Grade

Sensor Type
Differential Pressure Sensor (Mechanical)

Outer Size
4 inches (Standard)

Material
Die-cast Aluminum Case, Acrylic Cover

Dial Material
Plastic (white background with black and red markings)

Pointer Material
Black Aluminum

Processing Type
Pressure Differential Indication

Diameter
114 mm (4.5 inches)

Glass Size
Full View, clear acrylic lens

Mount Type
Surface/Flush Mount

Scale Range
0-0.2 Inch WC

Accuracy
2% of Full Scale

Finishing
Black anodized aluminum case

Measure Pressure Of
Steam, Oil, Gas

Accessories
Two 1/8 NPT Plugs, Two Mounting Adapters, Three Screws, Instructions

Model Number
2000-0-0.2 (Magnehelic Gauge)

Mounting Orientation
Vertically

Response Time
Instantaneous Mechanical

Maximum Pressure
15 psig (1.03 bar)

Enclosure Protection
IP54 Equivalent

Operating Temperature Range
-7C to +60C (20F to 140F)

Resolution
0.005 Inch WC

Zero Adjustment
External adjustment screw

Dwyer USA Magnehelic Gauges .05-0-.2 Inch WC Trade Information

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cash Against Delivery (CAD), Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
Andaman and Nicobar Islands, Dadra and Nagar Haveli, Chandigarh, Himachal Pradesh, Nagaland, South India, East India, West India, Assam, Arunachal Pradesh, Bihar, Delhi, Gujarat, Goa, Jammu and Kashmir, Jharkhand, Karnataka, Maharashtra, Mizoram, Meghalaya, Manipur, Punjab, Pondicherry, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, West Bengal, Uttarakhand, Daman and Diu, Lakshadweep, Uttar Pradesh, Madhya Pradesh, Haryana, North India, Andhra Pradesh, Kerala, Central India, Odisha, Chhattisgarh, All India

About Dwyer USA Magnehelic Gauges .05-0-.2 Inch WC

Dwyer USA Magnehelic Gauges .05-0-.2 Inch WC

Model	Description
2000-00N	Differential pressure gage, range .05-0-.2 Inch WC, minor divisions .005, calibrated for vertical scale position.

The industry standard in indicating low air or gas pressures of positive, negative, or differential pressures.

Large, easy-to-read 4" (102 mm) dial.

No manometer fluid to evaporate, freeze, or cause toxic or leveling problems.

INCLUDES

Two 1/8" NPT plugs, two 1/8" rubber tubing adapters, and three mounting adapters with screws

MORE ABOUT THIS ITEM

The Magnahelic guage is the industry standard to measure fan and blower pressures, filter resistance, air velocity, furnace draft, pressure drop across orifice plates, liquid levels with bubbler systems, and pressures in fluid amplifier or fluidic systems. The gauge's motion is damped with high-viscosity silicone fluid. The zero adjustment screw is conveniently located in the plastic cover, and is accessible without removing the cover. O-ring seal provides pressure tightness. Rugged design resists shock, vibration, and overpressure.

The helix is precision-made from an alloy of high magnetic permeability. Mounted in jeweled bearings, it turns freely, following the maganetic field to move the pointer across the scale. The samarium cobalt magnet is mounted at one end of the range spring and rotates the helix without mechanical linkages.

Specifications & Description

Accuracy	±3% full-scale
Dial Size (in)	4
Dial Size (mm)	102
Min Pressure (in WC)	0
Max Pressure (in WC)	0.5
Min Temperature (° F)	20
Max Temperature (° F)	140
Min Temperature (° C)	7
Max Temperature (° C)	60
Liquid Fill	Silicone
Case	Aluminum
Lens Material	Polycarbonate
Process Connection	1/8" NPT(F)
Unit Of Measurement	" WC
Display	analog dial
Media Compatibility	Air and noncombustible, compatible gases
Description	Magnehelic Differential Pressure Gauge, 2000-00N: .05-0-.2 Inch WC

High Accuracy Differential Pressure Measurement

The Magnehelic Gauge measures very low pressure differences with exceptional 2% full scale accuracy, suitable for tasks requiring sensitive monitoring. Its mechanical, diaphragm-based sensor eliminates the need for external power, ensuring reliability even during power outages. This accuracy and dependability make it ideal for critical applications in industrial settings, laboratories, and HVAC systems.

Rugged Industrial Construction

Built for durability, the gauge features a die-cast aluminum case, silicone seals, and a clear acrylic lens, all protected by IP54 equivalent enclosure. The externally accessible zero adjustment screw allows for fast onsite recalibration. This construction makes it suitable for both indoor and sheltered outdoor installations, resisting dust and occasional splashes.

Easy Installation and Versatile Mounting

Designed for surface or flush mounting, the gauge includes all necessary accessories: mounting adapters, plugs, screws, and user instructions. Its 1/8" NPT female ports ensure simple connection to process lines, while the standard 4-inch diameter allows for easy integration into control panels or equipment. The full-view acrylic lens guarantees clear readability from various angles.

FAQ's of Dwyer USA Magnehelic Gauges .05-0-.2 Inch WC:

Q: How do I install the Dwyer Magnehelic Gauge Model 2000-0-0.2?

A: Installation is straightforward: mount the gauge vertically on a flat surface or flush with a panel using the included adapters and screws. Connect your process lines to the 1/8" NPT female ports. Ensure the device is at eye-level for optimal readability and verify proper zeroing after installation using the external adjustment screw.

Q: What media can this Magnehelic Gauge measure pressure in?

A: This model is designed to accurately measure differential pressures for steam, oil, and gas applications. It is ideal for industrial processes where it is important to monitor small pressure changes across filters, clean rooms, or ducts.

Q: When should I adjust the zero setting on the gauge?

A: Zero adjustment is recommended after installation, if the gauge is relocated, or periodically during routine maintenance to ensure continued accuracy. The external zero adjustment screw allows for quick corrections without disassembling the gauge.

Q: Where can the Magnehelic Gauge be used?

A: The gauge is suitable for use in industrial environments, HVAC applications, laboratories, and process monitoring panels, both indoors and in sheltered outdoor locations, thanks to its IP54 equivalent enclosure protection and durable construction.

Q: What benefits does the instantaneous mechanical response offer?

A: The gauge provides real-time pressure readings without lag, which is essential for critical applications where immediate monitoring of pressure fluctuations can prevent equipment damage or process interruptions.

Q: How is the reading displayed on this Magnehelic Gauge?

A: Pressure differentials are indicated on a large, full-view analog dial, with a white plastic background and black/red markings, enabling easy and quick reading by operators in varied lighting conditions.

Q: What maintenance is required for ongoing accurate operation?

A: Regular maintenance includes occasional zero adjustment, periodic inspections for dust or moisture ingress, and verifying the tightness of process connections. The rugged design minimizes routine maintenance needs.
